SketchUp: Sculpting a Future of Personalized Prosthetics and Body Parts
The field of prosthetics is undergoing a transformative renaissance, shedding its clunky, one-size-fits-all image and embracing a future of customized, lightweight, and incredibly functional artificial limbs. This revolution is fueled by advancements in 3D printing and design software, with SketchUp standing as a champion for accessibility and user-friendliness.
The Evolution of Prosthetics
Prosthetics have come a long way from rudimentary wooden limbs to highly sophisticated and technologically advanced prosthetic devices. Traditionally, the creation of prosthetics involved labor-intensive processes and often resulted in standardized designs that did not cater to the individual needs and preferences of the users. With the advent of digital technology, particularly 3D modeling software like SketchUp, a paradigm shift has occurred, offering a new frontier for designing and producing prosthetic limbs.
Democratizing Design: From Expensive Silos to Open-Source Studios
Traditionally, prosthetic design was an exclusive club, guarded by expensive, specialized software with a steep learning curve. This limited the field to a select few, often leaving patients with limited options and ill-fitting prosthetics that felt more like burdens than extensions of their bodies.
SketchUp shatters these barriers with its intuitive interface and readily available learning resources. It's like having a digital sculpting studio in your pocket, allowing anyone with a basic understanding of 3D space to contribute. Prosthetists, therapists, makers, and even the patients themselves can now be active participants in the design process, ensuring that each prosthetic is not just functional but also deeply personal.
From Scan to Print: Tailoring Solutions, Not Limbs
The magic of SketchUp lies in its ability to translate individual needs into tangible realities. It all starts with a 3D scan of the patient's residual limb or desired body part. This scan data becomes the digital clay, upon which the prosthetist or maker begins their sculpting journey.
Using SketchUp's intuitive tools, they build a 3D model that is not just anatomically accurate, but also intricately detailed to match the patient's unique body contours. Internal structures for strength and support are meticulously designed, while necessary joints and mechanisms are incorporated with precision. The outer form is then sculpted to achieve a natural look that blends seamlessly with the patient's body.
This level of customization was once a pipe dream. It's like having a personal tailor for your body, crafting a piece that is not just functional, but also aesthetically pleasing and confidence-boosting. Imagine a prosthetic arm that reflects your personal style, or a facial prosthesis that restores not just function, but also your unique smile.
Beyond Prosthetics: A Canvas of Possibilities Awaits
SketchUp is not a one-trick pony. It is a versatile tool that can be used to design and create:
1. Orthopedic braces and supports that move with the body, not against it, empowering individuals with disabilities to reclaim their active lifestyles.
2. Cranial and facial prostheses that restore not just function, but also a sense of self, allowing individuals to confidently face the world and reconnect with loved ones.
3. Custom medical devices and implants that are tailored to individual needs and anatomies, offering groundbreaking solutions for complex medical challenges.
4. Anatomical models for education and training, bringing medical understanding to life for students, professionals, and the general public.
This is just a glimpse into the vast potential of SketchUp. As 3D printing technology continues its rapid evolution, SketchUp will be at the forefront, enabling the creation of solutions that were once thought impossible.
Case Studies: SketchUp in Action
1. Limbitless Solutions
Limbitless Solutions, a non-profit organization dedicated to providing affordable and customizable prosthetic limbs, has embraced SketchUp in its design process. By leveraging the software's capabilities, Limbitless Solutions can create personalized prosthetic arms for children at a fraction of the cost of traditional prosthetics. The intuitive nature of SketchUp allows the organization to involve young users in the design process, making the prosthetic experience not only functional but also empowering.
2. Open Bionics
Open Bionics, a leading developer of bionic limbs, utilizes SketchUp to design prosthetics that merge cutting-edge technology with artistic expression. The software's versatility allows Open Bionics to create intricate and visually stunning prosthetic limbs. Through SketchUp, they can balance aesthetics with functionality, ensuring that users not only regain their mobility but also express their individuality through unique and personalized designs.
Challenges and Future Prospects
While SketchUp has significantly improved the landscape of prosthetic design, challenges persist. The learning curve associated with mastering the software can be a hindrance for some prosthetists and designers. Additionally, the need for advanced training in digital modeling and 3D printing technologies may pose a barrier to widespread adoption.
However, as technology continues to advance, these challenges are likely to diminish. Future iterations of 3D modeling software may feature enhanced user interfaces, AI-assisted design tools, and improved compatibility with emerging technologies. The convergence of virtual reality (VR) and 3D modeling holds promise for even more immersive and intuitive design experiences, further bridging the gap between prosthetists, designers, and end-users.

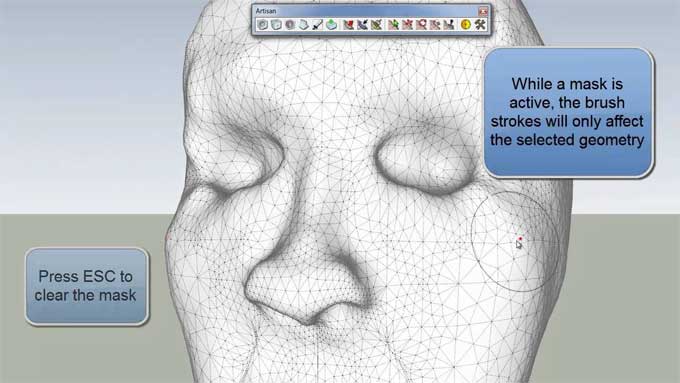

To learn more, watch the following video tutorial.
Video Source: O'Reilly - Video Training
Building an Inclusive Future, One Design at a Time
SketchUp is not just a software; it is a movement. It is democratizing the field of prosthetics and body part creation, empowering individuals, prosthetists, and makers to push the boundaries of design, affordability, and accessibility. Imagine a future where anyone with the need can access a personalized, perfectly fitting prosthetic, crafted with the power of SketchUp and 3D printing.
This is not just a technological leap; it is a human revolution. It is about giving people back their confidence, mobility, and sense of wholeness. It is about empowering individuals to reclaim their lives and participate fully in the world around them. And SketchUp is proudly playing its part in making this future a reality.
Conclusion
Prosthetics, once basic wooden limbs, have evolved significantly with technology. Traditional methods were labor-intensive, yielding standardized designs that didn't address individual preferences. The emergence of digital tools, especially 3D modeling software like SketchUp, marks a paradigm shift, providing a new avenue for personalized and technologically advanced prosthetic limb design.
