Download SketchUV Plugin for SketchUp

The SketchUV is the staple plugin for the SketchUp software, which helps to perform complex texture placement. The SketchUV plugin has a simple interface that is activated by using the combination of the context menu and the toolbar button. In the case of placing textures on furniture or any kind of complex organic design models into the designs, the SketchUV plugin is useful. This essential UV mapping tool is useful to create boxes, tubes, spherical, planar and cylindrical designs.

The SketchUV plugin is compatible with different SketchUp versions, including SketchUp 2021, SketchUp 2022, SketchUp 2023, SketchUp 2024 and SketchUp 2025. The SketchUV plugin for the SketchUp software has been supported on Mac and Windows. The supported language for the SketchUV plugin is English. The users have the chance to access the design tools and features of this SketchUp plugin for free.

Design features of the SketchUV plugin for SketchUp software

➢ Through the SketchUV plugin for the SketchUp software, the users are able to move, rotate and scale UVs.
➢ The users are able to save the UVs, as well as load the UVs with the help of the SketchUV plugin. In addition, the users are also allowed to change the design materials and maintain the UVs by using the SketchUV plugin.
➢ The SketchUV plugin enables users to generate triangulated geometries, and distorted textures can be removed by using the SketchUV plugin.
➢ The SketchUV plugin enables users to import and export the UVs with the help of third-party UV mapping software.

How to download and install SketchUV for SketchUp software

For downloading and installing the SketchUV plugin for the SketchUp software, the users have to follow several steps, which are as follows:

➢ At first, the users have to go to the Extension Warehouse. In this context, the user has to go to the Extension tab and has to select the Extension Warehouse.
➢ In the next step, the users have to search for the SketchUV plugin in the SketchUp Extension Warehouse and install the SketchUp plugin for free.
➢ In the next step, the user has to right-click on the top bar and then has to select the SketchUV plugin from the menu. This is done in case the SketchUV toolbar does not appear automatically after the installation procedure.

The process of fixing with the SketchUV plugin

To fix the SketchUV plugin, the users also have to follow several steps, which are:

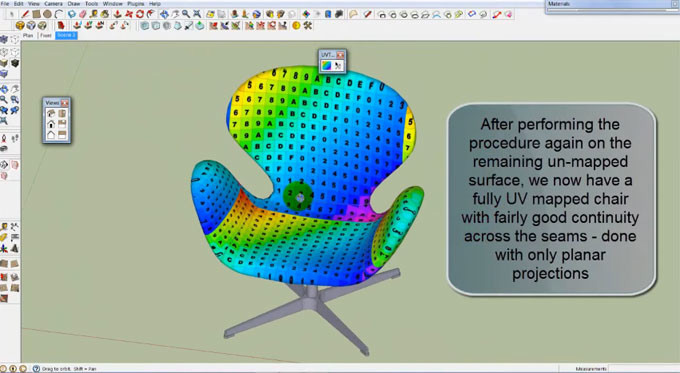

➢ At first, the user has to open the group of the couch object, and this can be done by double-clicking on it.
➢ In the next step, the users have to click on the faces that they want to remap.
➢ After selecting the faces, the user has to click on the SketchUV mapping tools icon from the SketchUV toolbar.
➢ In the next step, the users have to select different types of mapping tools. This helps to make the mappings more realistic. In this context, the users have to place the texture in one consistent direction.

Effectiveness of the SketchUV plugin for SketchUp software

Projection mapping tool

Through the projection mapping tool of the SketchUV plugin, users are able to extend the design surface from a plane.

Spherical mapping tool

The spherical mapping tool of the SketchUV plugin helps to encompass the design item, and this can be done by extending the guide from the circle. In this context, the users are able to see creases and surface singularities at the crossing point of the circle’s shafts and the bitmap edge.

Column mapping tool

The column mapping tool of the SketchUV plugin helps to venture the guide from the chamber and also helps to use it to wrap the design item.

Box stickers features

The boxes are solid shapes, in which the directions of the boxes do not join completely. The box stickers features of the SketchUV plugin solve the issue by extending the surface from the sides.

Path mapping tool

The path mapping tools of the SketchUV plugin help to divide the complex surfaces into smaller sections, which makes the mapping process easier.

Four-sided mapping tools

The users are able to apply a duplicate of each face of the design item with the help of the four-sided mapping tool of the SketchUV plugin. In addition, this tool also enables the users to utilise the full square shape, which guides to planning of sets of appearances.

This helps to offer a secret edge to the design. The rectangular piece can also be utilised to plan the solitary face, which does not cover up the edges.

To learn more, watch the following video tutorial.

Video Source: mind.sight.studios

Download SketchUV for SketchUp

Subdivision triangle features

The Subdivision triangle offered by the SketchUV plugin is the three-sided face of the SketchUp software, which is found when there are a few spots.
