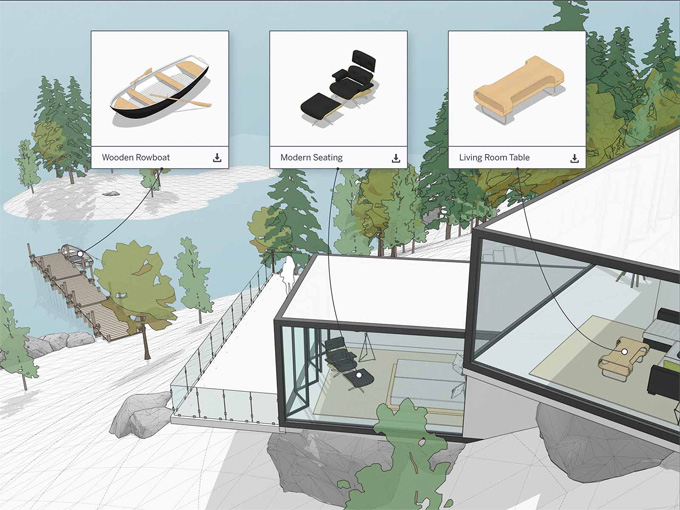

3D Modeling for Woodworkers SketchUp

Process of using SketchUp software for woodworking activities

The SketchUp software has been widely used by woodworkers, furniture designers and cabinet makers to create custom furniture designs.

Measuring the space

While creating woodworking activities using SketchUp software, the user has to measure the area in which they want to fit the furniture. The user has to find out the basic height, depth and weight of the furniture, and also the user has to measure the wall on which they want to put this furniture.

Drawing the tabletop

The user can use the rectangle tool and draw the tabletop. In addition, the user can also use the Push/Pull tool, which helps to extrude the tabletop downward to the thickness as per the design requirements.

Making the guides for the tabletop

The tape measure tool of the SketchUp software enables users to draw guides on the bottom of the tabletop.

Drawing the square and legs

The user can use the rectangle tool of the SketchUp software to draw a square of the tabletop and snap to the guides and to the corner. In this context, the user can also use the Push/Pull tool to extrude the leg of the table all the way to the baseline of the SketchUp file.

Colouring the faces

The user can double-click on the leg to edit and paint it. This painting process is important to add joinery in the design; as a result, the leg of the tabletop has been oriented accurately.

Determining the leg offset

The user can experiment with the leg offsets by moving the legs inward from the edge within the SketchUp software.

Determining the leg thickness

The user can use the Push/Pull tool of the SketchUp software to edit the leg component and decide the thickness of the leg.

Marking the apron pieces

In the next step, the user has to draw a guide parallel with the bottom of the tabletop by using the measuring tape. After that, the user can draw a rectangle to create the basis for an apron piece. In this context, the user can also use the Push/Pull tool, which enables the user to extrude the apron piece to the desired thickness of the table. The user can make the apron piece a component, and after that, these pieces can be duplicated to make the opposing apron piece. This process has been repeated to make the shorter apron pieces on the adjacent sides of the table.

Using the dimension tool

This dimension tool in the SketchUp software can be used to draw the important measurements of the table. This SketchUp tool helps to create detailed dimensions of each piece, can duplicate the pieces and can also move those pieces to the side; thus, the user can draw the dimensions on that piece.

Advantages of using SketchUp software for woodworking activities

Design interface for woodworkers

The SketchUp software helps to offer an intuitive and user-friendly interface, which allows woodworkers to design furniture, cabinets and joinery components. The SketchUp software helps users to focus on craftsmanship rather than complicated software.

3D visualisation feature

With the help of the SketchUp software, the user can create highly accurate furniture models along with more precise measurements. The user can design every panel and assemble with more confidence by using the SketchUp software. In addition, the user can also adjust the dimensions of the furniture in real time, which helps to minimise costly workshop errors before cutting the design materials.

Providing more precise designs

The SketchUp software allows users to create more realistic renders. This feature enables the clients to visualise the finished product before beginning the design process. The SketchUp software can also integrate with other rendering plugins, for example V-Ray, which enables users to create furniture models along with a professional and photorealistic appearance.

Optimising material usage

The SketchUp software enables users to plan more accurately regarding woodworking designs, and thus they can minimise waste. In addition, the user can also measure the design materials more effectively for the furniture designs by using the SketchUp plugins, which helps to improve profitability.

Creating custom furniture designs

By using the SketchUp software, the user can create custom furniture designs as per the design specifications of the clients. Thus, the woodworkers can create more unique furniture designs with more precision and clarity.

Provide client-ready presentations

The SketchUp software helps to produce professional 2D shop drawings, along with different annotations, design dimensions and detailed views. In addition, the user can also share interactive 3D models, which helps to ensure that all clients can understand the design intent clearly before design production starts.
